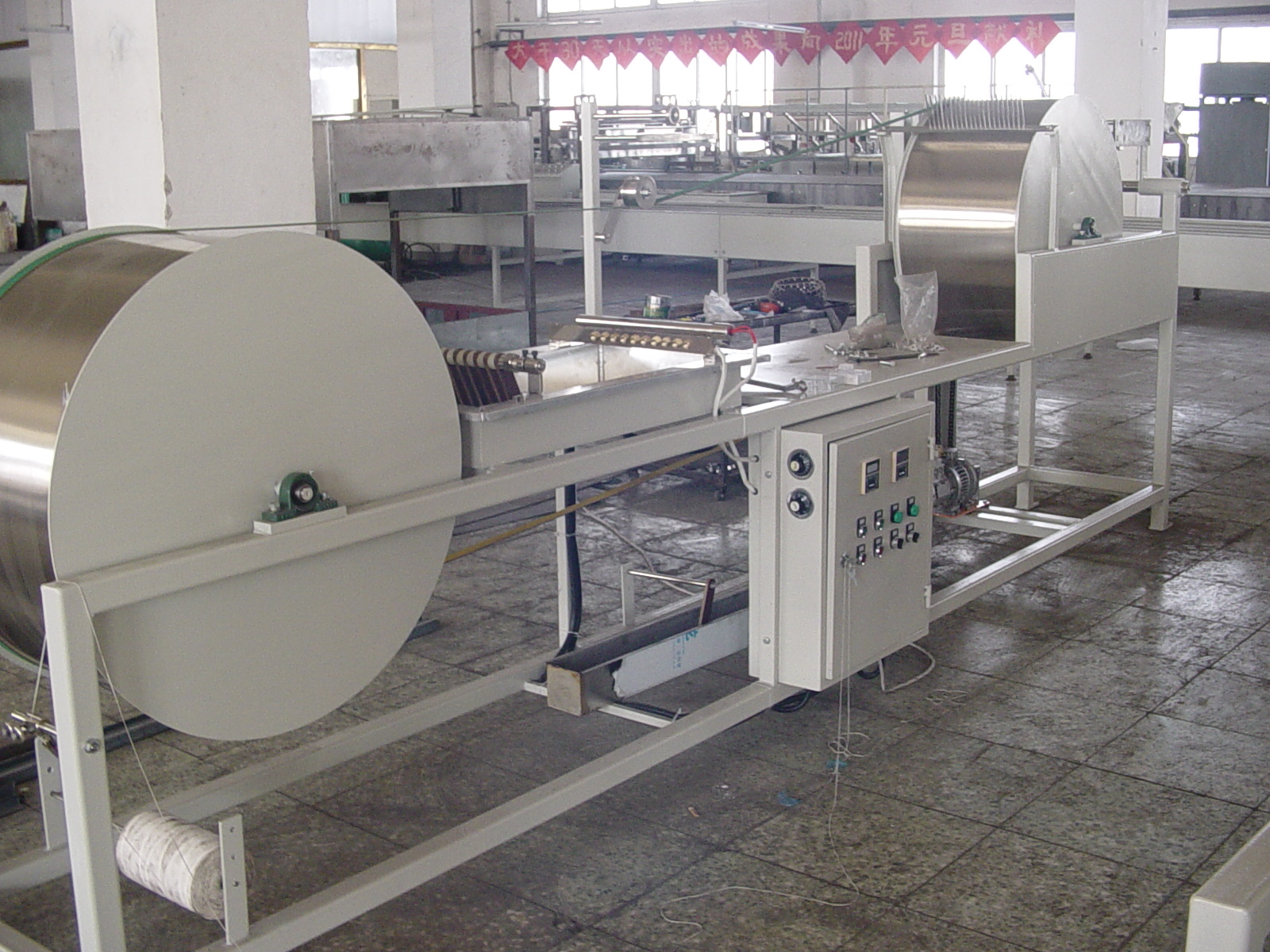

thread waxing machine

The machine is used to wax cotton or nylon thread

power: 380v,50hz, 3.1kw

Machine weight: 300kgs

Dimension:4200×800×1420mm

the machine is pre installed when delivery

you just need to connect the cable to the power supply

when use it.

capacity: 2000meter/hour

waxed thread dia range: 1.2-3.0mm

Waxed thread rewinding parts

Working process:

the unwaxed thread roll bobbin is located in the left lower corner,  and the single thread pulled

upward on the big wheels, then passing through the middle wax trough and get dipped/waxed,

then goes onto the second big wheel,  and from the second big wheel back to the first big wheel

for the second dipping/waxing. after four times of repeatedly waxing,  the thread diameter increased

gradually during the repeat waxing. finally the finished thread will be rewind on the second bobbin.

in the wax trough, there is a thread threshold panel which has several holes. the waxed thread will pass

through the threshold holes to get the required diameter. the holes diameter range from 1.2mm

to 3.0mm.

We have the video clips for your reference available on Email request.

Please contact us via Email : chinadlc@qq.com  mr lloyd
